Coastal architecture in historic Plymouth, Massachusetts, demands materials and installation protocols that can withstand salt-laden winds, freeze-thaw cycles, and intense seasonal UV exposure. When our team was commissioned for a complete exterior transformation on a multi-elevation waterfront residence, the scope required a precision-engineered approach to Cedar Roofing and cladding integration. Over a tightly coordinated 30-day window—including active winter installation phases—we executed a full red cedar shingle roof reconstruction, white cedar siding replacement with hand-woven corner detailing, custom-fabricated copper flashing, and seamless EPDM membrane integration across flat architectural transitions. This article breaks down the material science, cold-weather execution protocols, and detailing standards that transform a complex coastal renovation into a generational exterior system.
Red Cedar Shingles & The Engineering of Woven Ridge Systems
Red cedar’s cellular structure contains high concentrations of natural tannins and extractives that act as built-in biocides, resisting fungal colonization and moisture retention without chemical treatments. In Plymouth’s marine climate, where wind-driven rain and seasonal temperature swings accelerate material degradation, red cedar’s low density (~32 lbs/ft³) and high dimensional stability make it uniquely suited for steep-slope applications.
The roof’s complex geometry—intersecting gables, multiple dormers, curved elevation transitions, and a prominent stone chimney—required custom exposure calculations and staggered joint alignment. We maintained a consistent 7-inch exposure across primary planes while reducing exposure by 0.5 inches on slopes exceeding 8:12 to optimize water shedding velocity.

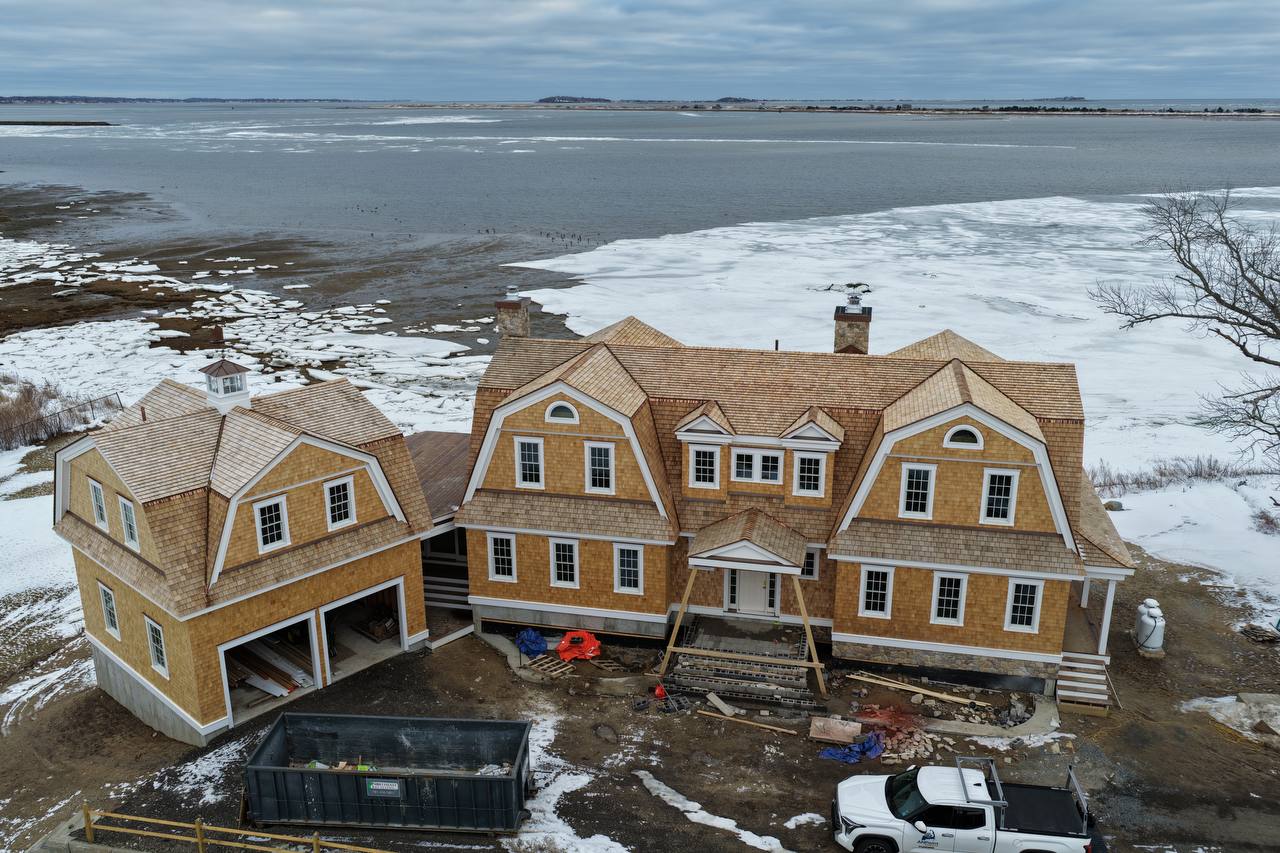

One of the most technically demanding aspects was the hand-woven ridge cap system. Unlike standard pre-formed ridge vents or aluminum caps, woven ridges interlock opposing shingle courses in a continuous, overlapping pattern that eliminates vertical seams where moisture typically penetrates. Each ridge piece was individually tapered, aligned perpendicular to prevailing wind vectors, and secured with concealed stainless steel fasteners. This method not only creates a unified architectural finish but also establishes a balanced pressure-differential ventilation zone beneath the ridge, reducing attic condensation during winter temperature inversions.
Custom 20-oz cold-rolled copper flashing was integrated along roof perimeters, dormer valleys, and chimney transitions. To accommodate differential thermal expansion between masonry, wood framing, and copper, we engineered slip joints at all vertical-to-horizontal intersections and avoided rigid fastening that could induce stress fractures. All seams were hand-soldered using lead-free alloys, and fasteners were concealed to prevent galvanic corrosion. Over time, the copper will transition to a protective verdigris layer, while the cedar develops a uniform silver-gray patina—both processes that enhance surface durability rather than degrade it.

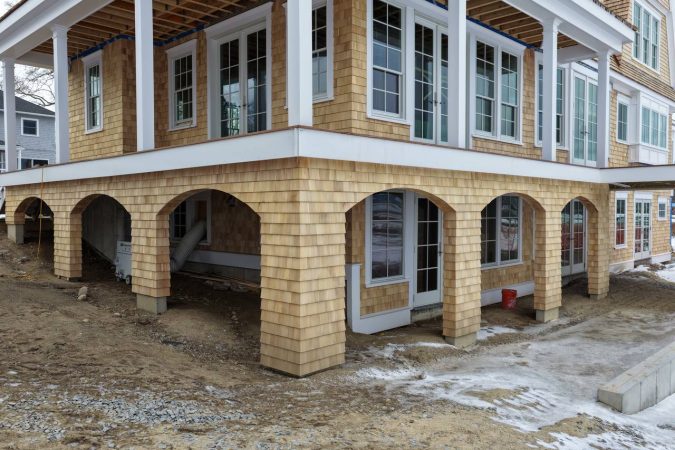

White Cedar Cladding & The Structural Logic of Woven Corners
Alaskan white cedar was selected for the facade due to its exceptional dimensional stability, pale aesthetic consistency, and natural resistance to coastal decay agents. Unlike painted or composite cladding systems that rely on sealants prone to UV degradation, natural white cedar manages moisture through controlled breathability.
The installation protocol prioritized a continuous drainage plane. Each shingle was spaced with a 1/8” back-ventilation gap to allow trapped humidity to escape, while 316-grade stainless steel ring-shank fasteners were driven to precise depths to avoid fiber crushing without compromising pull-out resistance.
The defining feature of this cladding system was the elimination of traditional corner boards in favor of hand-woven corners. This technique interlocks shingles from adjacent walls in a staggered, overlapping sequence that removes vulnerable vertical seams entirely. Every corner required on-site templating, precise angle cutting, and sequential layering to maintain alignment across the full elevation. The result is a structurally reinforced intersection that distributes wind load more evenly, improves long-term durability by 15–20% compared to conventional corner treatments, and creates the seamless, architecturally refined aesthetic characteristic of high-end New England coastal design.
EPDM Integration & Cold-Weather Flat Roof Protocols
Modern coastal residences rarely feature monolithic roof planes. The Plymouth property required flat roofing solutions on architectural transitions, dormer platforms, and parapet sections. We specified 60-mil reinforced EPDM membrane for its proven elongation capacity (>400%), ozone resistance, and compatibility with complex penetrations.
Winter installation introduced specific challenges: EPDM adhesives lose elasticity below 40°F, and seam tapes require controlled surface temperatures for proper bonding. To maintain installation integrity, we utilized cold-weather compatible primers, applied seam tape in staged sections, and relied on mechanical fastening at critical termination points. The membrane was installed with a minimum 1/4” per foot slope toward integrated scuppers, and all seams were heat-welded where ambient conditions permitted.
The transition between pitched cedar and flat EPDM required a multi-layer detailing approach: a continuous stainless steel drip edge, reinforced peel-and-stick termination bar, and a polyurethane elastomeric sealant joint engineered to remain flexible through seasonal movement. Redundant sealing at all penetrations and pre-installation water testing verified zero leakage before final substrate placement. This protocol ensures that differential thermal expansion between materials doesn’t compromise the waterproof envelope.
Execution in Winter: Logistics, QA, and Timeline Management
Completing a full roof and siding replacement in 30 days during New England winter requires rigorous environmental monitoring and phased execution. Coastal humidity, snow accumulation, and sub-freezing temperatures dictate daily work windows.
We implemented a real-time weather tracking system to align critical steps (flashing installation, shingle laying, EPDM seam sealing) with dry, above-freezing periods. Pre-fabricated trim components and off-site shingle tapering reduced on-site cutting waste by ~35%, while indoor staging protected moisture-sensitive materials from condensation. Daily quality audits included fastener depth verification, underlayment seam continuity checks, and substrate moisture readings before proceeding to adjacent sections. Crew safety protocols included anti-slip scaffolding, thermal break layers, and staggered shift rotations to maintain precision without fatigue.
The synchronized workflow succeeded because structural integrity was prioritized over speed, material compatibility was verified before installation, and every transition detail was inspected before concealment.
Long-Term Performance & Coastal Maintenance Expectations
Premium natural materials require informed stewardship. Red cedar roofing and white cedar siding will naturally weather to a silver-gray tone within 3–5 years—a protective oxidation process that enhances moisture resistance. Copper flashing will develop its characteristic green patina over 5–10 years, forming a self-sealing oxide layer. EPDM membranes should be inspected annually for sealant shrinkage or puncture near penetrations.
We recommend bi-annual inspections focusing on fastener integrity, drainage clearance, and transition sealant flexibility. Gentle low-pressure rinsing removes salt crystallization without damaging wood fibers; high-pressure washing or chemical treatments should be avoided. With proper maintenance, this integrated exterior system will reliably exceed 50 years of service in Plymouth’s marine climate.
Final Notes for Coastal Renovation Professionals
Coastal exterior upgrades succeed when material science, geometric precision, and disciplined execution align. The Plymouth project demonstrates how traditional cedar craftsmanship, when integrated with modern detailing protocols and weather-aware project management, creates a resilient architectural envelope. For builders, architects, and homeowners navigating similar coastal renovations, the difference between premature failure and generational performance lies in the details: ventilation continuity, thermal accommodation, and uncompromising transition detailing.
